Heating lamination machine
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
DESCRIPTION

GENERAL INTRODUCTION




1. With equal thickness, having good ink absorption and strong color appearance
2. High density for the connection of PVC and mesh cloth.

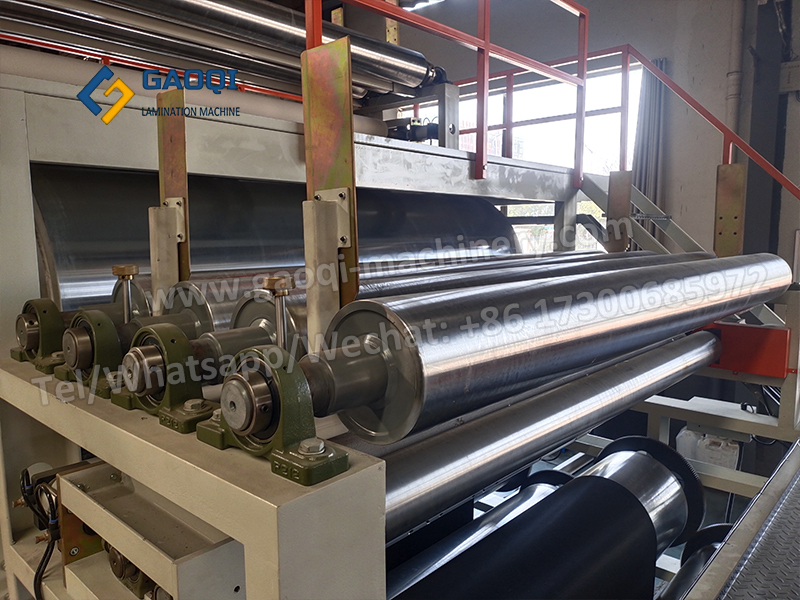

3. Heating by mirror rollers
4. No need to paste glue, compound with hot pressing.
5. With automatic winder, easy for operating.
6. Correct temperature control, equal control for tension.
7. All heating rollers has been process precisely, with high precision and good balance for the concentricity and coaxiality.
8. With good temperature protection for the heating rollers, with low loss of power.
9. Main electrical parts adopt famous foreign brand, with good stability and credibility.
10. This equipment has the advantages of high capacity, high efficiency, stable quality, easy operation and etc. it is the best choice for Ad customers.





SPECIFICATION

   GQ-3700-PVCLM

MAX. PRODUCTION WIDTH:



3300mm

ROLLER SURFACE WIDTH:

3700mm

MAIN ROLLER DIAMETER:

1000mm

WORKING SPEED:

5-15M/MIN

OVERALL POWER:

25KW(not include outer thermal heating device)

HEATING MODE:

HEAT TRANSFER OIL

VOLTAGE:

380V 50HZ 3P /CUSTOMIZED

DIMENSION(LXWXH)

12500mmx4000mmx4000mm
