The machine adopts solvent-free and environment-friendly hot-melt adhesive, which is suitable for various composite materials required by the market. The laminated products have the following advantages:

✦ Solvent free,not toxicity,environmentally friendly
✦ Good adhesion and softness
✦ High and low temperature resistance
✦ Not easily affected by temperature after moisture reaction
✦ Breathable
✦ Wear resistance,oil resistance,aging resistance
✦ Light weight,softness
✦ Wash resistance

TECHNICAL DRAWING

MAIN TECHNICAL PARAMETERS

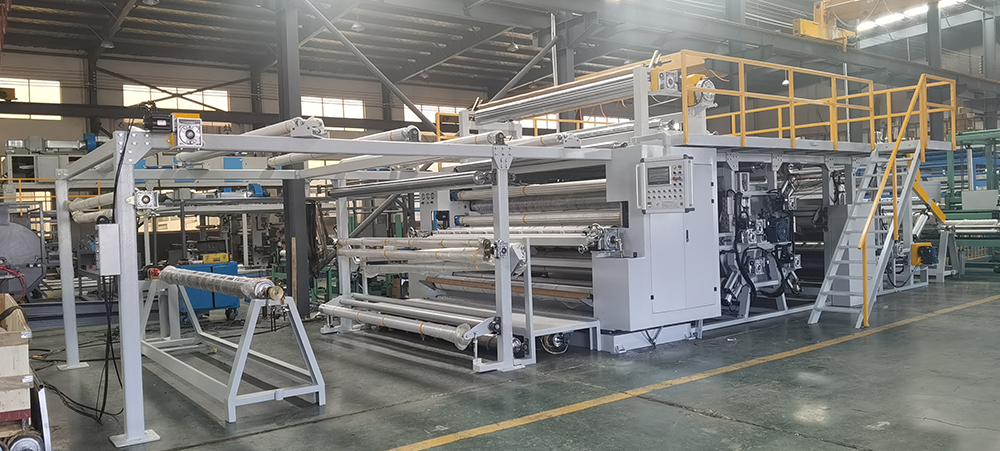

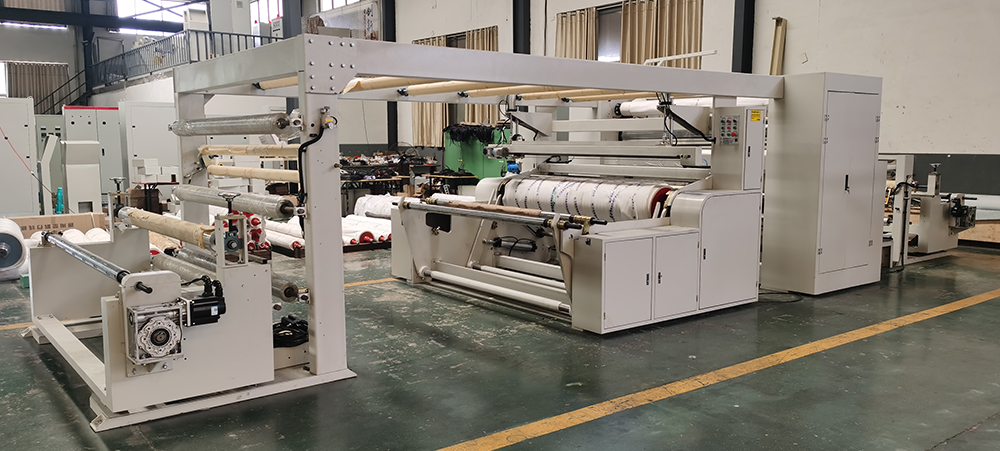

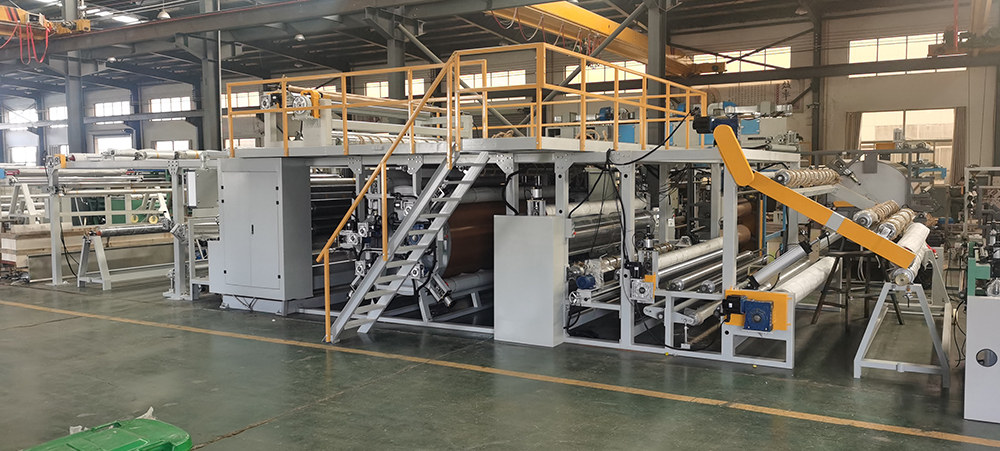

MACHINE  PHOTO

APPLICATION

It can be used for laminating 99.9% of textiles, such as fabric + fabric, fabric + film, etc. It is widely used in clothing industry, automobile manufacturing industry, medical industry and environmental protection industry.

Major Application

◆ Regular apparels (fashion apparel,outerwear,etc.)
◆ Protection garments (industrial wear, medical wear,
safety wear, etc.)
◆ Home textiles(mattress covers.baby bed protectors etc.)
◆ Inner wears(thermals,lingerie,etc.)
◆ Hygiene products(diapers.feminine hygiene products etc.)
◆ Defence garments,Sports apparel (sports gears,etc.), Filter material
◆ Medical industry

Suitable Material

◇ Fabric to fabric: textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede, etc.
◇ Fabric to films: such as PU/TPU /PTFE /PE /PVC film, etc.
◇ Fabric to Leather/Artificial Leather, etc.
◇ Diving fabrics, Medical material, Non-woven products, Sponge/ Foam,Plastics,EVA+PVC,etc.

COMPONENT

The control adopts programmable PLC design and man-machine interface control, and the operation is simple. The tension-free feeding device is matched with the heating circulation system, which is convenient to control the temperature rise, temperature drop and stability of glue. The bonding materials and finished products can adopt Center / center winding or surface selection as required. The gluing methods are divided into dot gluing and mesh gluing.

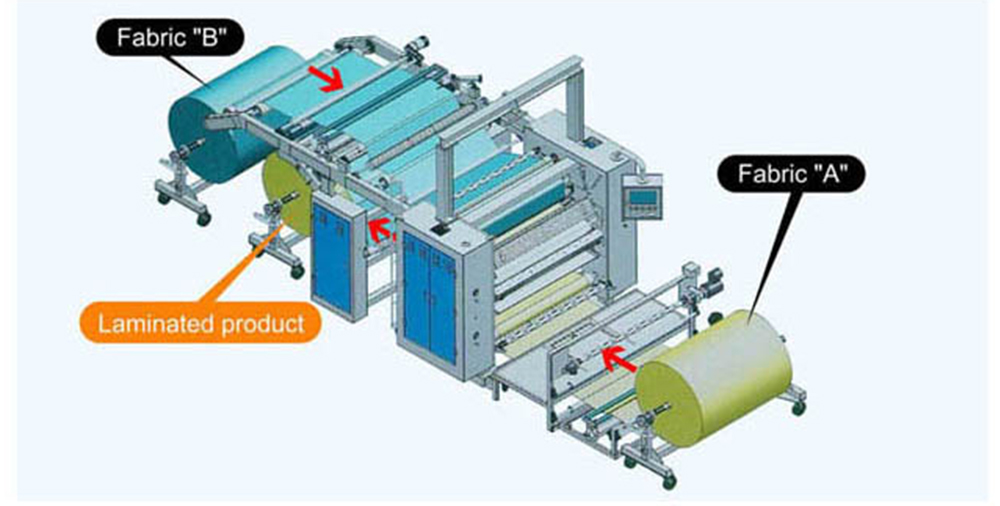

WORKING PRINCIPLE

Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices.
